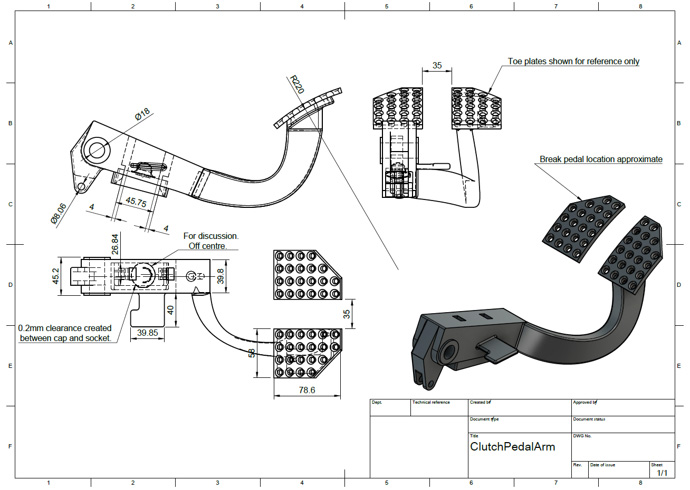

We can, when required, convert 2D drawings into 3D models and vice versa. This is particularly useful when the only data which is available to manufacture legacy components are old drawings, in electronic or paper format.

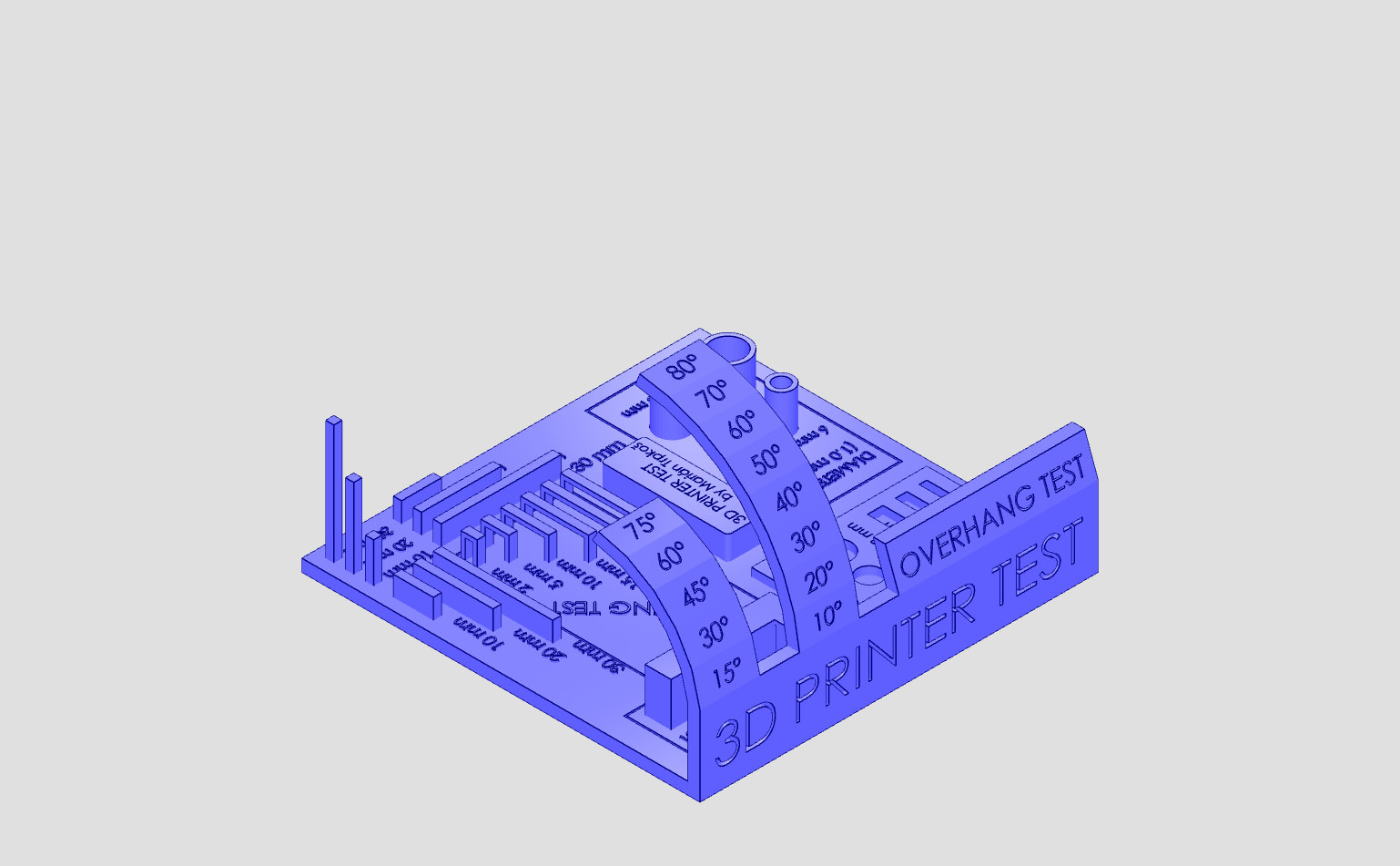

We can undertake a full analysis of 3D models, to make sure they are suitable for 3D printing and machining, and offer advice on how to improve the model for manufacturability.

Often, when a model is required of an assembly of parts, the CAD files can become very large and unwieldy. When a large model is scaled to a smaller size, walls can become too thin to build. This is not only true for engineering assemblies, but also for complex structures such as buildings, and other architectural models. Aben Europe has the 3D modelling capability to manipulate 3D CAD models so that the parts which are produced represent the intention of the designer. This reduces the work load of the client, and also helps to ensure that good models are made.

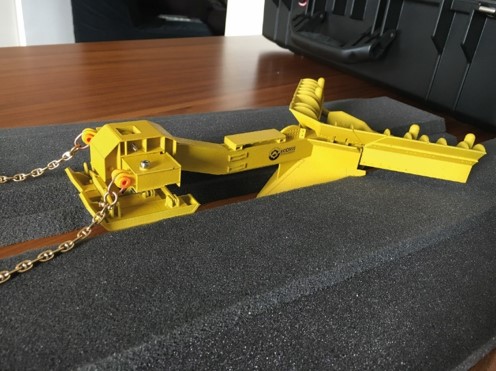

1:40 scale models of subsea trenching and boulder clearance equipment.

3D printed detailed model of a tracked seabed vehicle.

Set of models to demonstrate a modular trenching system. Supplied in a case to facilitate easy transport to client meetings.

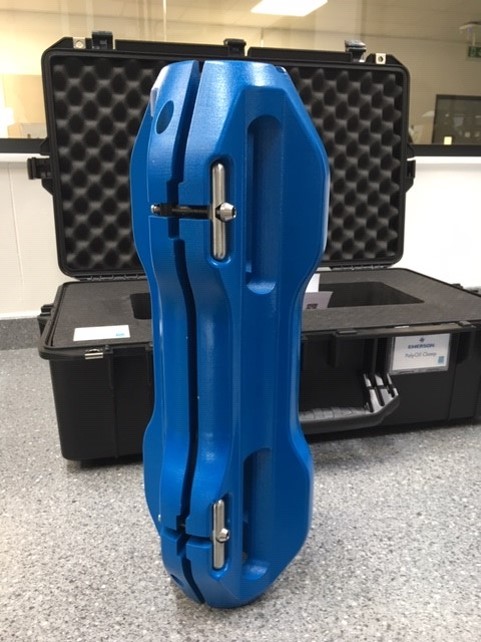

3D printed version of a new pipe-clamp design. Supplied in-time for an exhibition (5-day lead time). Normal manufacturing involves machining mould masters for a large injection moulding system which takes several weeks. 3D printed in nylon (same as the production version) and finished in RAL colour matched paints, with hardware supplied by the client.

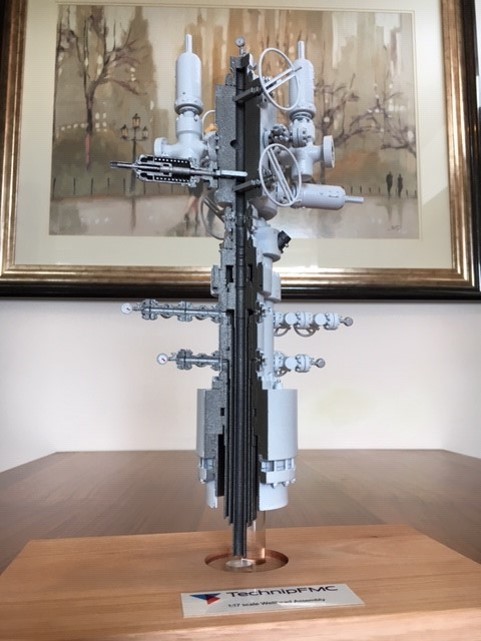

Presentation model from customer provided CAD files. 3D printed SLS finished in white with a CNC machined hardwood base.

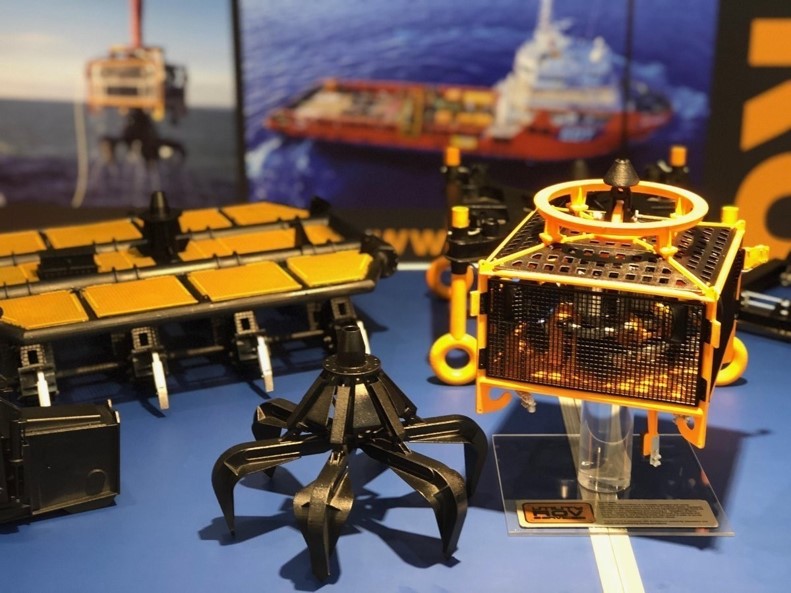

Detailed model of an ROV with a range of tool attachments. Finished in RAL matched colours. End-to-end solution provided with signage, display-stand, folding display table, fitted foam boxes for each model and a container for transport.

Detailed model of an ROV with a range of tool attachments. Finished in RAL matched colours. End-to-end solution provided with signage, display-stand, folding display table, fitted foam boxes for each model and a container for transport.

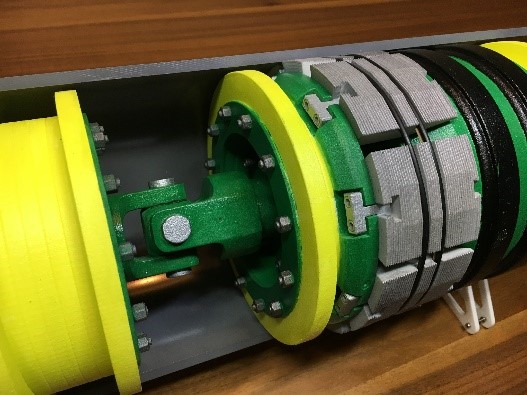

Scale desktop demo models of pipe plugs. 3D printed multiple models ordered for marketing teams worldwide.

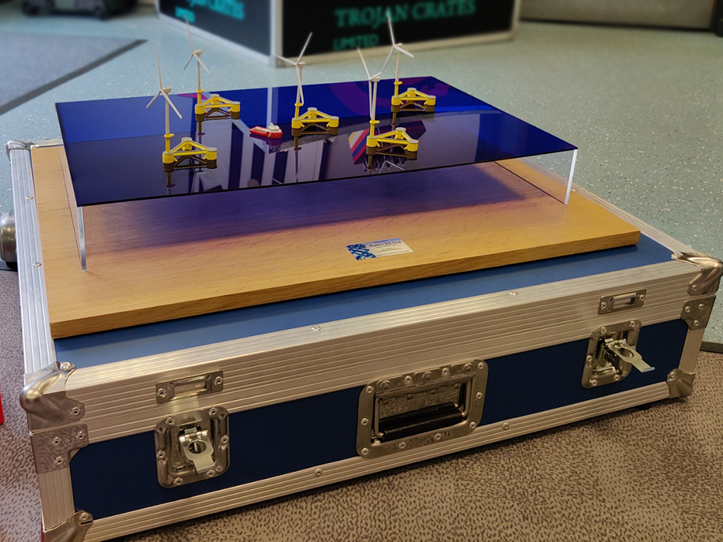

Model of an array of floating wind turbines manufactured by 3D printing.

Magnets used to snap top and bottom sections either side of blue tinted acrylic representing the sea surface.

Magnets used to hold the blades to the turbine – so that they rotate and break away if knocked.

Supplied with transit case for storage and transport.

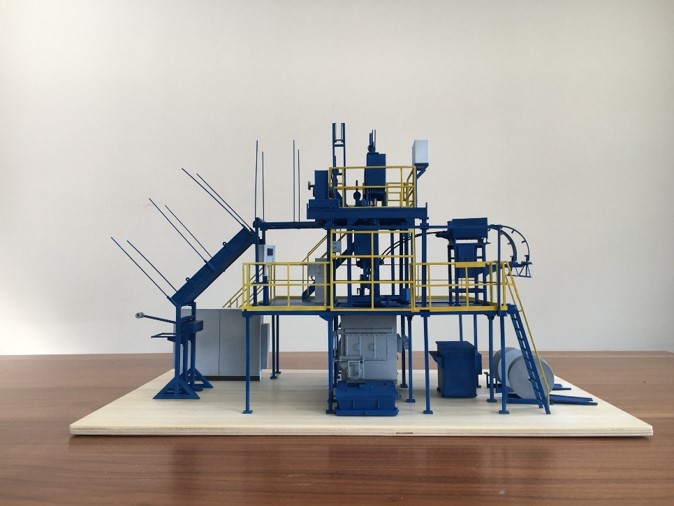

A scale model of a copper smelter plant, manufactured in Dundee and sold worldwide. 3D printed in 60+ parts and assembled on a CNC-cut base.

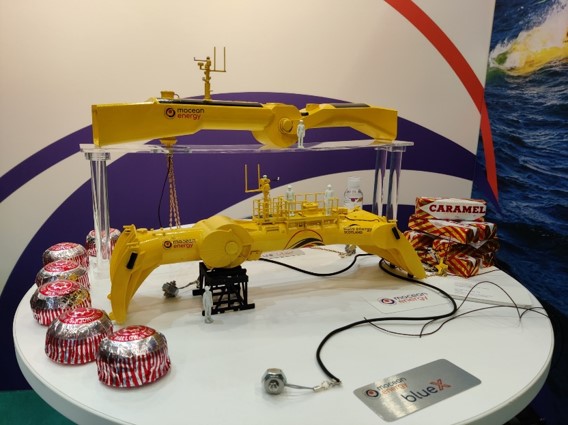

1:50 Scale models of wave powered, floating electricity generators.

Two 3D printed models, sized to be transportable in an airline hand-carry case.

RAL Matched colours and logos. Acrylic stand and signage.

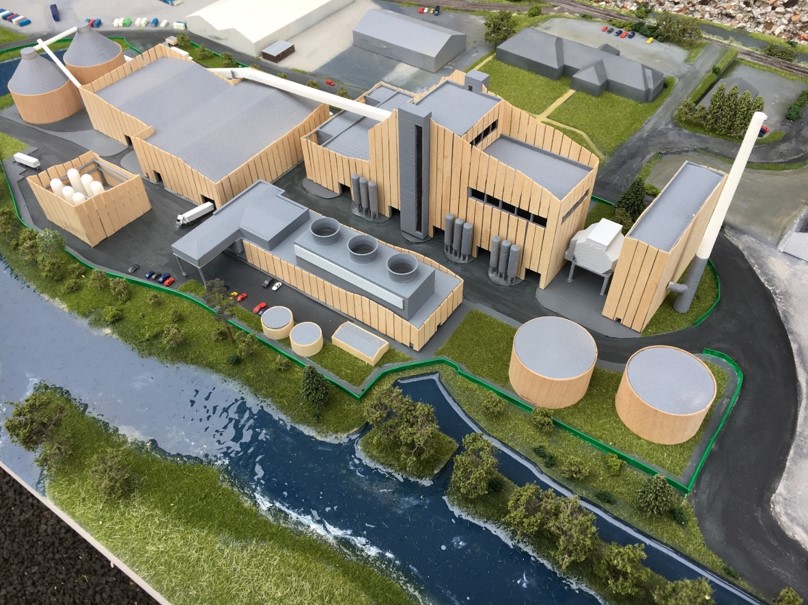

1:500 Scale model of a proposed recycling plant. Model covering the new site plus the surrounding area to give context.

Emphasises wooden panels as a key design feature.

Lays out vehicles to show flow of traffic through the site.

Keeps contextual elements fairly plain, but consistent so as not to distract from the main elements.
